What you need

• Drawing paper Cartridge or sketch paper with a little tooth.
• Blue pencil A light blue col-erase pencil, or a very light HB.
• Graphite pencils HB and 2B; a 4B or 6B for the darkest darks.
• Kneaded eraser Press and lift; pinch it to a point for highlights.
• Sharpener A sharp point makes cleaner hatching.

Step by step

1.
   01

   Placement

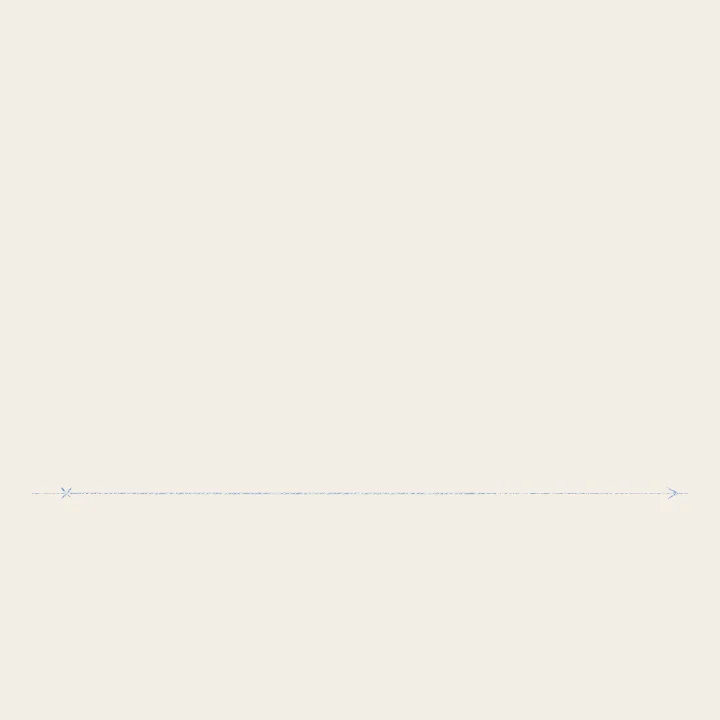

   Eye level and two vanishing points

   Standing in the street, your eyes are 1.6 m up. Rule the horizon low on the page and set two vanishing points on it.

2.
   02

   Big shapes

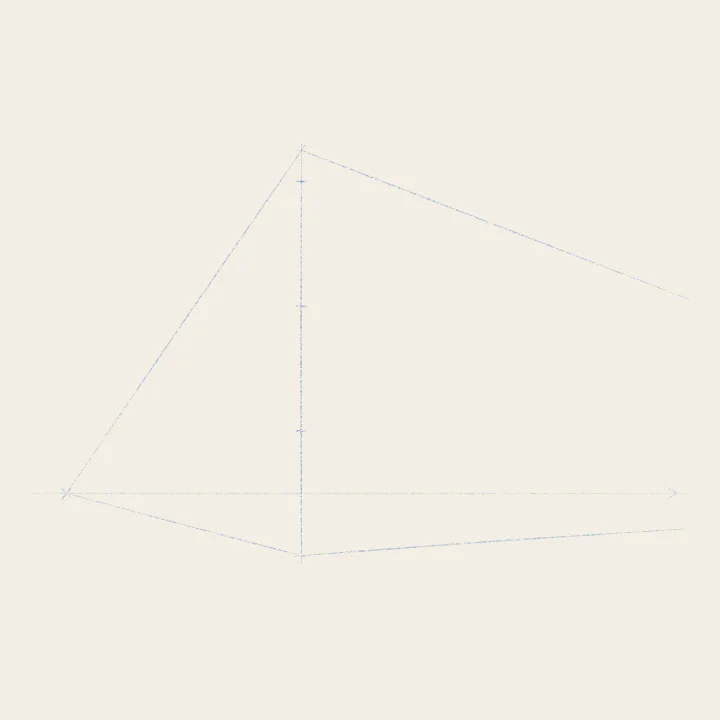

   The nearest corner

   Draw the nearest corner as one vertical and tick the floors on it. Run lines from its top and base to each vanishing point.

3.
   03

   Construction

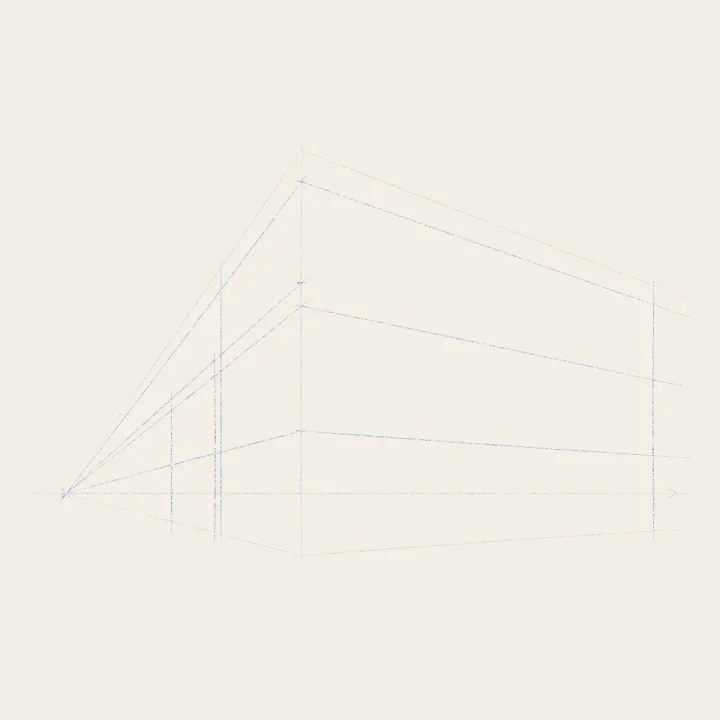

   Floors and the far ends

   Carry each floor from the corner to both vanishing points. Close each facade with a vertical at its far end.

4.
   04

   Construction

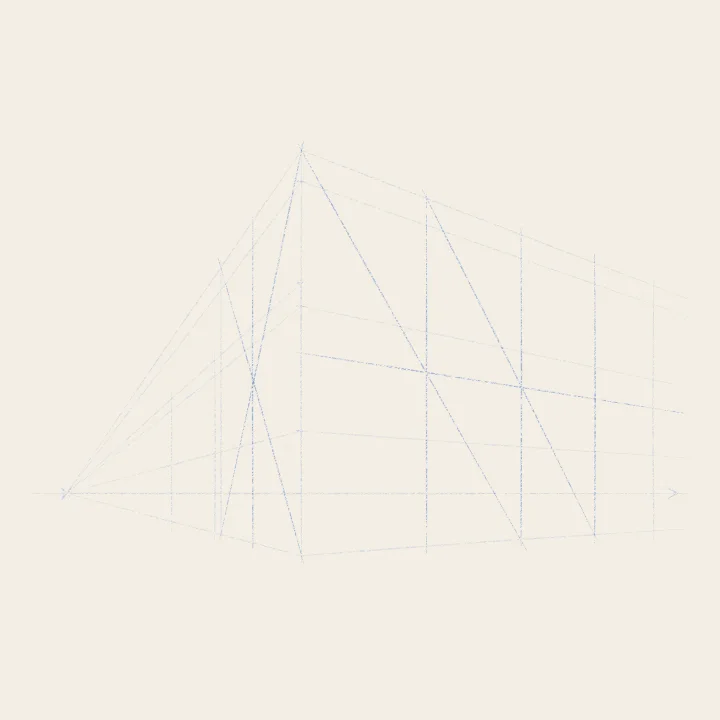

   Equal bays with diagonals

   Draw a middle line to the vanishing point. A diagonal from one bay line’s top, through the next one’s middle, finds the bay after.

5.
   05

   Construction

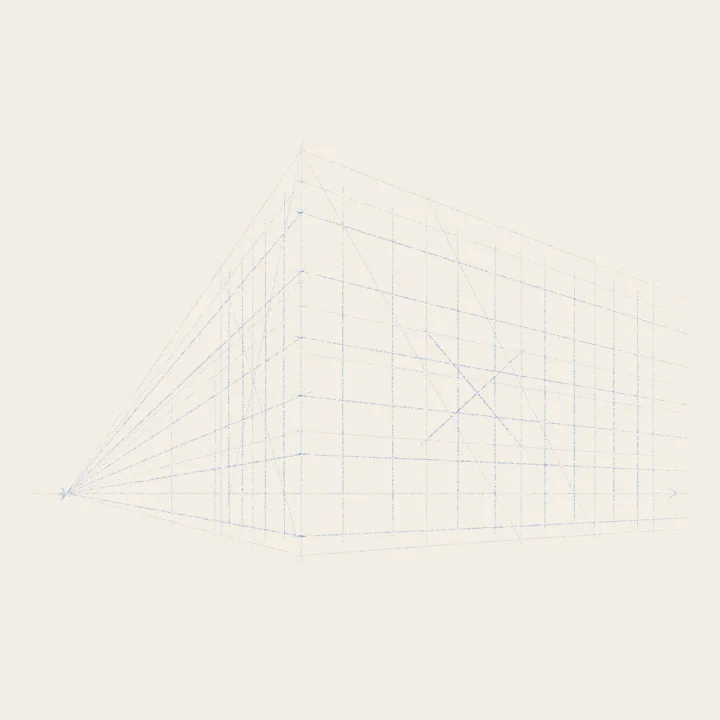

   A window in the middle of each bay

   Cross one bay’s diagonals to find its middle, and hang the window on it. Every sill and head runs to its vanishing point.

6.
   06

   Construction

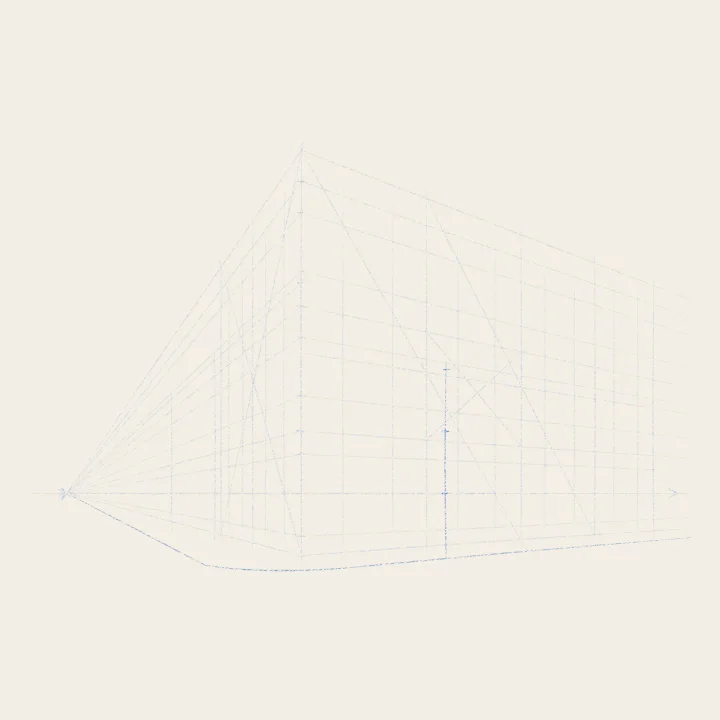

   The kerb and the lamp post

   The kerb runs with each facade, to the same vanishing points. The lamp post is three eye levels tall: measure it against the horizon.

7.
   07

   Construction

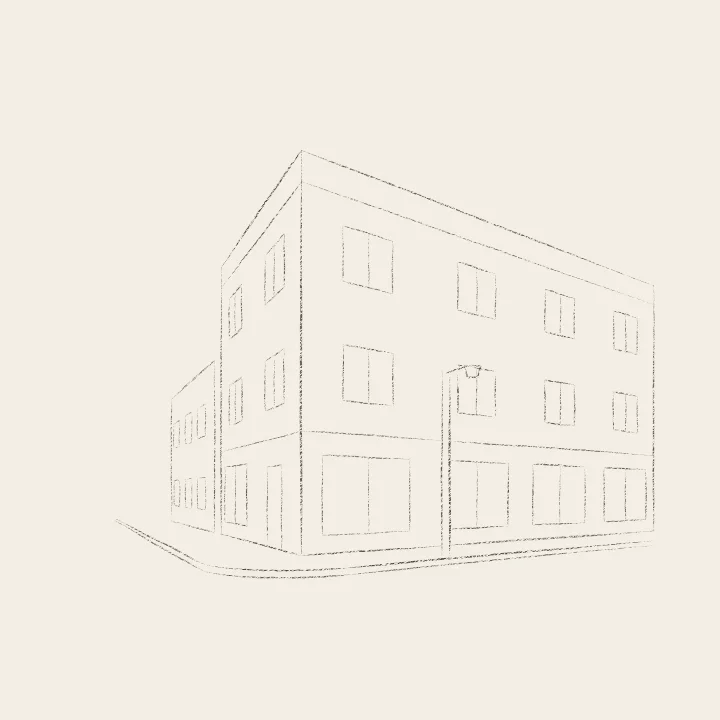

   Commit the lines, lift the blue

   Graphite from corner to corner: the near corner firmest, edges lighter as they recede. Leave the construction behind and lift every blue line.

8.
   08

   Light and shadow

   One facade in sun, one in shadow

   The sun is on the left. The left facades face it and stay light; the right facade turns away: one even middle grey.

9.
   09

   Finishing touches

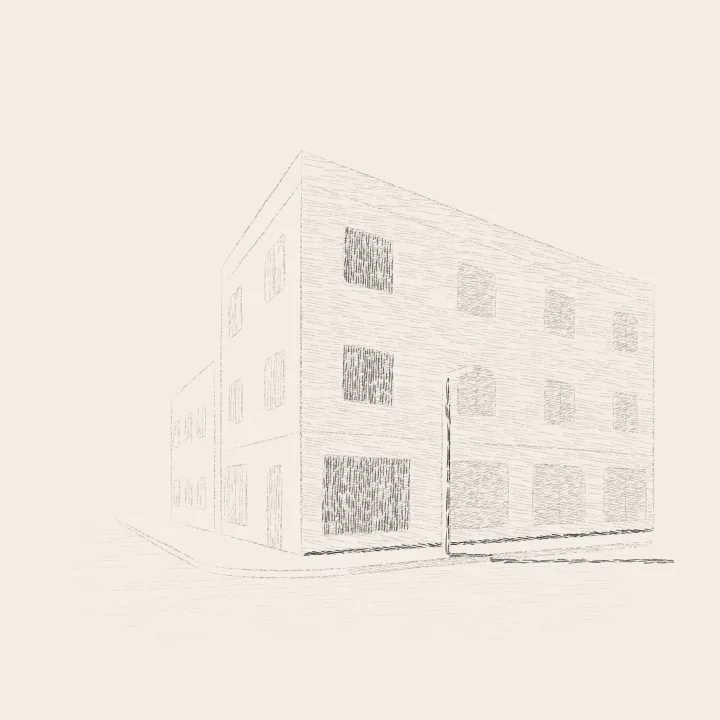

   The darkest darks

   Deepen the glass by the near corner and the post’s shaded side. Its shadow runs level: the sun is square to your view.
